Applications:
- Wide variety
Light commercial applications
- Not for
outdoor use, unless in NEMA housing
Installation:
The position
of the digital timer front panel in relationship to the enclosure/mounting
panel face plate can be adjusted by replacing the original
spacers with longer or shorter ones, depending on the individual
preference or the needs.
Timer Connections,
Inputs and Outputs:

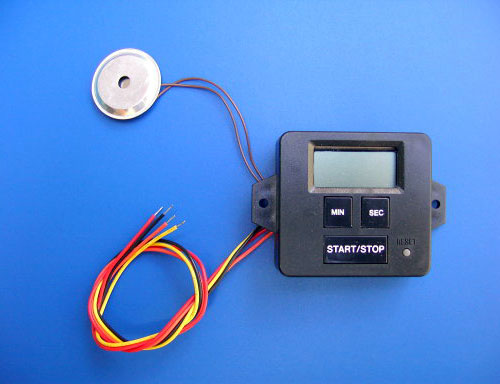

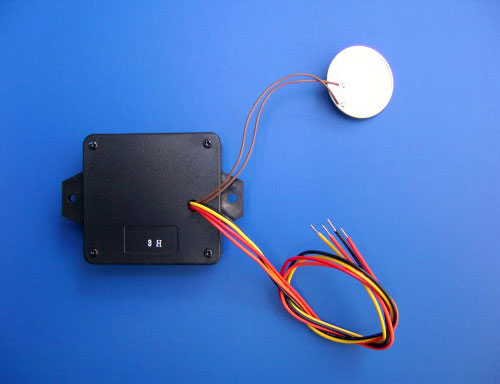

- Timer Connections:
- 10” /25cm
wire leads / 24G
- 4”/10cm
wire leads with Buzzer disc
- Timer Power Input:
- 1.5VDC /
10mA
- BLACK
Lead: “-“ 1.5VDC (GND)
- RED
Lead: “+” 1.5VDC
- Audio
Output
- Buzzer,
disc shape, 6” leads
- Secondary
Buzzer signal (usually cut-off)
- BLACK
Lead: “-“ 1.5VDC (GND)
- YELLOW
Lead: Buzzer signal (“+” 1.5VDC)
- Electrical
Signal Output
- “LOW” when
not active (in STOP or PAUSE mode)
- “HIGH” when
active (counting down)
- Black
Lead: “-“ 1.5VDC (GND)
- Orange
Lead: LOW/HIGH signal (“+” 1.5VDC/Max.
1-2mA)
|
|
Note: Buzzer
disc CAN BE attached to the back side, eliminating the need for special
holding assembly/mounting of the disc. Clients must request this
assembly as a custom order (service fee will apply - U$1.50/unit
regardless of the quantity discount on the product itself).
Digital Count-down
Timers with LCD display are available in following ranges:
DCT/MS
99 minutes | 59 seconds
[MM|SS]
DCT/MS is currently not available.
|
DCT/HM
99 hours | 59 minutes
[HH|MM]
|
The following pictures
show examples of how the digital countdown timers can and are used:
|
A
DCT/MS built into a
peristaltic pump.
|

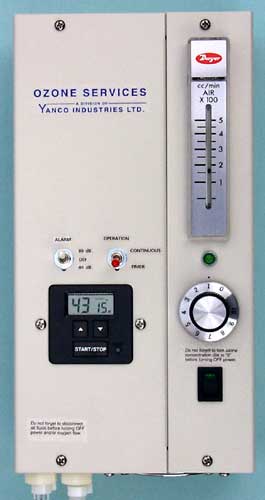

A
DCT/4M build into a
GE60 Ozone Generator
|
An OL100/TB
Ozone Generator |
|
OzoneLab™
Digital
Countdown Timers (no PCB)
