OzoneLab™ instruments are designed for low flow/high output applications and are not suitable for flow rates above 1000ml/min due to the size of orifices in the ozone gas flow path. Gas Pressure is 0-3 p.s.i. (For applications dealing with higher pressures - please contact us for more info and/or consultation).

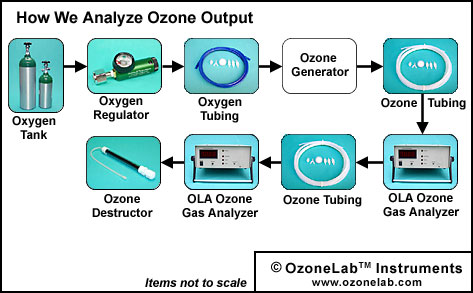

As you can see on the picture, we channel ozone produced by the ozone generator to 1st analyzer and then to 2nd unit. Naturally, additional distance (tubing) between two analyzers creates some minor differences in the ozone concentration readings, however these differences are carefully monitored. If the difference between individual readings is more then +/-1% from ozone output tested, we start to look for reasons why the difference exists:
The purchase of quality testing instruments reflects a commitment to quality of product(s) and service(s) provided to the client, and it is in our opinion not a luxury or a marketing trick as some of our competitors claim.
For cross referencing purposes, we are also using in our test laboratory ozone analyzers produced by Anseros Company in Germany.
